SMD Chip Coil Inductor FLCxxxxNLCL General Type

Product Details:

Product Type FLCxxxxxxNLCL Type
Application Microtelevisions , Liquid Crystal Display, video camera , portable VCRs , car radio , car stereo , thin tape radio , television tuners , mobile telephone, radio and other electronic devices. Modem , OA products , TV sets , VCR , Etc.
Size 160808/201212/252012
Function power inductor
Share Your Product:

0.03 - 0.08 USD ($)/Box

Get a Price/Quote

Request To Call Back Send Inquiry

SMD Chip Coil Inductor FLCxxxxNLCL General Type Price And Quantity

Price Range 0.03 - 0.08 USD ($)/Box
Minimum Order Quantity 1 Piece

SMD Chip Coil Inductor FLCxxxxNLCL General Type Product Specifications

Product Type FLCxxxxxxNLCL Type
Function power inductor
Application Microtelevisions , Liquid Crystal Display, video camera , portable VCRs , car radio , car stereo , thin tape radio , television tuners , mobile telephone, radio and other electronic devices. Modem , OA products , TV sets , VCR , Etc.
Size 160808/201212/252012

SMD Chip Coil Inductor FLCxxxxNLCL General Type Trade Information

FOB Port Tao-Yuan airport
Supply Ability 1000 Piece Per Week
Delivery Time 6-8 Week
Sample Policy Within a certain price range free samples are available
Packaging Details Tapped & Reeled
Certifications ISO9000/ISO14000/TS16949

Product Description

Features

Very strong solderability by soldering flow and soldering iron.
Highly accurate dimensions;can be mounted automatically.
Terminals are highly resistant to pulling force.
Highly resistant to mechanical shock and pressure.
Highly reliable in environments of sudden temperature change and humidity . Super characteristics.

Application

MMicrotelevisions , Liquid Crystal Display, video camera , portable VCRs , car radio , car stereo , thin tape radio television tuners , mobile telephone, radio and other electronic devices.

Technical Specification

SIZE CODE	A Max.	B Max.	C Max.	D Ref.	E	F	G	H	I	J	Series Spec.
FLC160808NLCL (0603)	1.80 (0.071)	1.22 (0.048)	1.07 (0.042)	0.38 (0.015)	0.90 (0.035)	0.31 (0.012)	0.93 (0.037)	1.02 (0.040)	0.64 (0.025)	0.64 (0.025)
FLC201212NLCL (0805)	2.35 (0.093)	1.78 (0.070)	1.60 (0.063)	0.51 (0.020)	1.27 (0.050)	0.51 (0.020)	1.02 (0.040)	1.78 (0.070)	1.02 (0.040)	0.76 (0.030)
FLC252018NLCL (1008)	2.92 (0.115)	2.79 (0.110)	2.23 (0.088)	0.51 (0.020)	2.03 (0.080)	0.51 (0.020)	1.52 (0.060)	2.54 (0.100)	1.02 (0.040)	1.27 (0.050)

Other Products in 'Chip Coils & Inductors' category

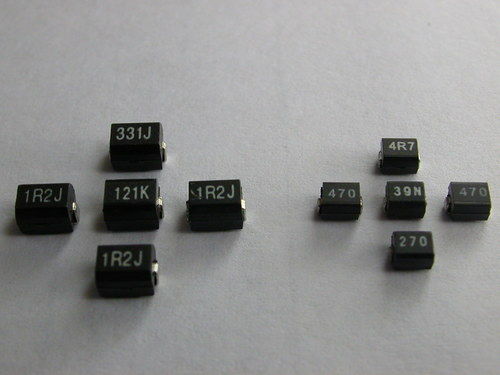

SMD Chip Coils/Inductors SMDV-2520V5650V Type Price Range : 0.03 - 0.08 USD ($)/Box Minimum Order Quantity : 1 Function : Power Inductor Product Type : SMD2520V~SMD4532V Application : High reliable wire would chip inductors for communication, equipment, instrument, video & audio have been developen in response to the trend toward higher density mounting of parts in electric circuits. Size : SMD2520V: 2.5 x 2.0 x1.0 ; SMD2520VP: 2.5 x 2.0 1.0 ; SMD3225V: 3.2 x 2.5 ; SMD3225VP 3.2 x 2.5 ; SMD3225VH:3.2 x 2.5 ; SMD4532V:4.5 x 3.2 ; SMD4532VP:4.5 x 3.2 ; SMD5650V:5.6 x 5.0 ; SMD5650VL: 5.6 x 5.0
